Fire Extinguishers
Dry Powder Extinguisher
Features
- Synergy Brand Dry Powder Fire Extinguisher (Stored Pressure) contains MAP (Mono Ammonium Phosphate) powder
- Suitable to fight all three classes of fire (A B & C) and hence it is also known as multipurpose fire extinguisher
- Also available in stainless-steel
- Ideal uses: Home, office, shops, warehouses, farms and woodworking areas
Technical Details
| Extinguishing Agent | Mono Ammonium Phosphate (MAP) (ABC Dry Powder) | ||||
|---|---|---|---|---|---|
| Suitable for Class | A B C | ||||
| Capacity (kg/lt.) | 1 kg | 2 kg | 4 kg | 6 kg | 9 kg |
| Outside Diameter (mm) | 86 | 108 | 150 | 160 | 180 |
| Hose/Nozzle | Only Plastic Nozzle | Only Plastic Nozzle | PVC Hose with Nozzle | PVC Hose with Nozzle | PVC Hose with Nozzle |
| Design as per Standards | CE / EN-3 / IS:15683 | CE / EN-3 / IS:15683 | CE / EN-3 / IS:15683 | CE / EN-3 / IS:15683 | CE / EN-3 / IS:15683 |
| Discharge - Quantity | More than 85% | More than 85% | More than 85% | More than 85% | More than 85% |
| Duration/Time (Sec.) | 8 to 10 | 9 to 12 | 12 to 15 | 15 to 20 | 23 to 30 |
| Range/Throw (Meter) | 2 to 3 | 2 to 3 | 4 to 5 | 4 to 6 | 6 to 7 |
| Operating Temperature (? C) | -10 to 55 | -10 to 55 | -10 to 55 | -10 to 55 | -10 to 55 |
| Fire Ratings | 1 A 8 B | 1 A 8 B | 1 A 13 B | 2 A 21 B | 2 A 34 B |

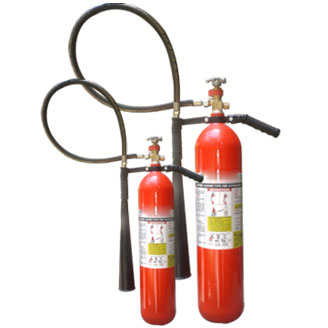

CO2 Extinguisher
Features
- Carbon Dioxide extinguishers contain pressurized liquid carbon dioxide, which turns to gas when expelled
- The main advantage of CO2 fire extinguishers is that the agent does not leave residue after use
- It is discharged as a white cloud of "snow" which smothers a fire by eliminating oxygen
- It is effective for Class B and C flammable liquids and is electrically non-conductive
- Carbon Dioxide is a clean, non-contaminating, odourless gas
Ideal Uses
- Chemical and manufacturing plants, oil rigs, rail yards, warehouses, constructions sites, parking garages, airport ramps, boat docks and large laboratories

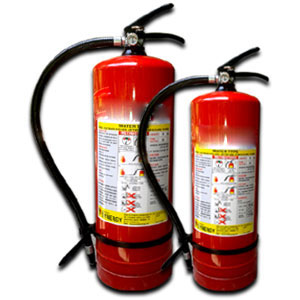

Water Fire Extinguisher
Features
- Water fire extinguishers are filled with water and super pressurize with nitrogen
- It is a liquid agent only recommended for fighting class 'A' class of fires
Ideal Uses
- Schools, Theatres, Department & retail stores
| Extinguishing Agent | WATER |
| Suitable for Class | A |
| Capacity (kg/lt.) | 9 lt |
| Outside Diameter (mm) | 180 |
| Hose/Nozzle | PVC Hose with Nozzle |
| Design as per Standards | CE / EN-3 / IS:15683 |
| Discharge- Quantity | More than 90% |
| Duration/Time (Sec.) | 23 to 30 |
| Range/Throw (Meter) | 6 to 7 |
| Operating Temperature (? C) | 5 to 55 |
| Fire Ratings | 3 A |

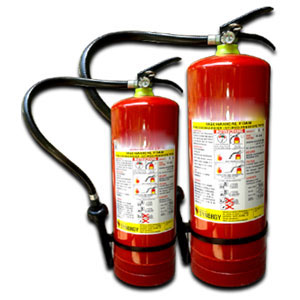

Foam Fire Extinguisher
Features
- Foam Fire Extinguishers contains Aqueous Film Forming Foam concentrate (AFFF) which has characteristics of film forming due to which flame is rapidly knocked down and sealing of fuel surface is achieved
Ideal Uses
- Oil & fuel warehouses, Fuel Pumps, Factories etc.
| Extinguishing Agent | AFFF Foam |
| Suitable for Class | A B |
| Capacity (kg/lt.) | 9 lt |
| Outside Diameter (mm) | 180 |
| Hose/Nozzle | PVC Hose with Nozzle |
| Design as per Standards | CE / EN-3 / IS:15683 |
| Discharge- Quantity | More than 90% |
| Duration/Time (Sec.) | 23 to 30 |
| Range/Throw (Meter) | 6 to 7 |
| Operating Temperature (? C) | 5 to 55 |
| Fire Ratings | 3 A 34 B |
